Automatic label dispenser Label Combi-180 (Super Wide), Barcode Printer, QR Code Printer _ Made in KOREA

Automatic label dispenser Label Combi-180 (Super Wide), Barcode Printer, QR Code Printer _ Made in KOREA

0 reviews 0 sold. Only 100 remain
USD $489.57 USD $599.13 -18%
Negotiable (specific conditions to required)
Brands
Product Code: Labelcombi_180
Stock In Stock
Viewed 2992 times
Ship from South Korea
House Brand available (OEM, ODM, OBM)
Dropshipping available

Seller information
  • (주)라벨콤비 / Label Combi
  • South Korea
  • Premium Partner
  • Seller Rating:    0 Reviews
  • Contact Seller
  • Visit Seller's Store
  • Product Description

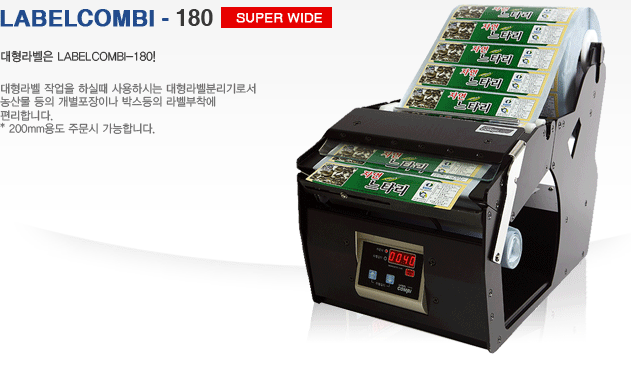

    This is a large label separator used when working with large labels, which is convenient for individual packaging of agricultural products, etc. or labeling on boxes.
    *Available when ordering for 200mm applications.

    Size: 216*242*358 mm
    Feeding Speed: 100mm/sec
    Label size: 5-180mm
    Max label roll diameter: pl 300ml
    Usable label material: any material
    Power and power consumption: AC 220V / 5W





    Label Combi 180 Installation Instructions
    1. With the power switch on the right rear side turned off, pull the locking lever forward to release it.
    2. Hang the label roll on the mounting bar.
    3. Bend the label strip into a “U” shape and thread it through the middle bar of the label guider.
    4. After lifting the separator unit, wrap the label strip and place it between the three feet of the inner coiler, then lower the separator unit.
    5. After aligning the label strip, lift the locking lever and gently push it up to the locking part when you hear a “click” sound, then turn on the power switch.

    How to use the label combi 180 operation panel
    - Label length adjustment: Press "UP" or "DOWN" button to turn on "Separation Length- LED GREEN". Depending on the size of the figure, it is separated and the length at which it comes out and stops is adjusted.
    - Normally, "Counter-LED RED" is lit and the counter number with the label removed is displayed. At this time, if you press the "Counter Reset" button, the value becomes "0".
    - Error Clear: If the label is not detected after a certain period of time, the motor stops rotating and the numerical display part blinks. At this time, press the "Counter Reset" button to cancel.
    - Adjust Speed: Press the "UP" and "DOWN" buttons at the same time for about 5 seconds, the red and green LEDs blink alternately, and the displayed value is the motor speed. Adjust from 1 to 10 using the "UP" and "DOWM" buttons. (Usually, the maximum speed is set to "10".)
