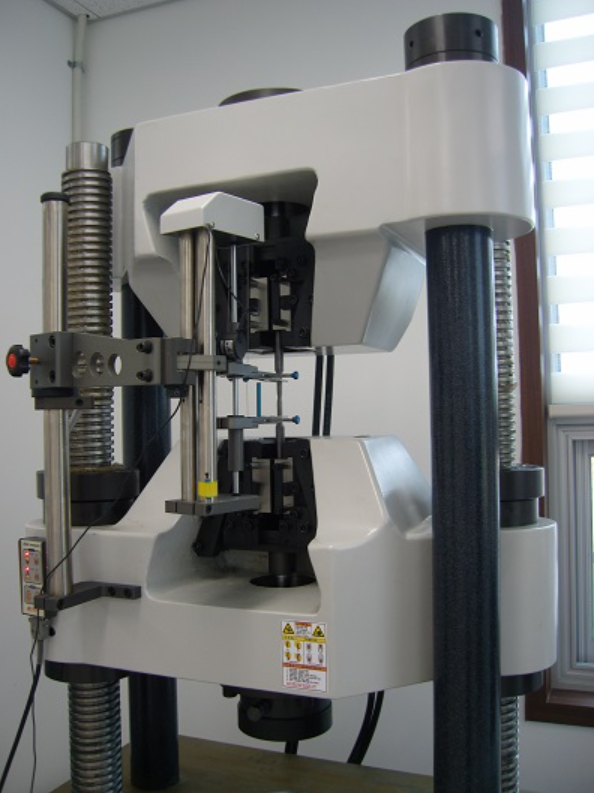

[Daekyung Tech] Hydraulic universal testing machine

Quote Contact_cs@roasexpo.com

The DTU-HS series is an entry-level model of the H series.
Both models share the same test specifications, but if the stroke of the HS series is shorter by 50mm,
the overall size is small, and only models of 500kN and 1 MN can be manufactured, and it is safe for companies that use standard specimens.

The chuck that holds the sample as well as the main cylinder that applies the load is operated by a small hydraulic cylinder.
(The testable MAX.STROKE of the main cylinder is 150mm)

JAWs for round bars and flat plates that can be used for each capacity are provided.

Volume           Reputation        Hwanbong
500 kN          40 mm              12~35 Ø
1 MN             50 mm              20~65 Ø

Test speed: 0.1~80 mm/min
Loading accuracy: ± 0.4 %
Speed ​​accuracy: ± 1.5 %

AC 220V 3-phase / AC 380V, 3-phase power is used.

Innovative Software - HIVE

By introducing a library system, it is designed so that new operators can test quickly and safely.
After setting the test conditions for each sample, if you save them in the library folder,
you can call them up at any time and perform tests that meet the conditions immediately.
In an environment where multiple operators handle the testing machine, it can cause problems due to incorrect use,
or innovatively reduce the time it takes for new users to handle the testing machine.

* Store conditions and titles in the library system.

* library system

 - Title of exam

 - Tensile/Compression/Repeat determination

 - Determination of sample type

 - speed setting

 - Special condition setting (load maintenance and ramp section tuning)

 - Graph and unit setting

 - Set the movement of the crosshead after the test

 - File saving section setting

* Test conditions saved in the library system can be loaded and the test can be performed immediately, and all test contents are automatically saved in a folder.

Automatic OFFSET Yield Point Search
Poisson's ratio measurement
R value measurement
Auto-detect modulus
load holding test
multi-speed test
cycle test
High-temperature furnace/environmental chamber application test
Convert data to excel
You can easily use the functions required for all tensile and compression tests.
