Description
Reviews (0)

Product Description

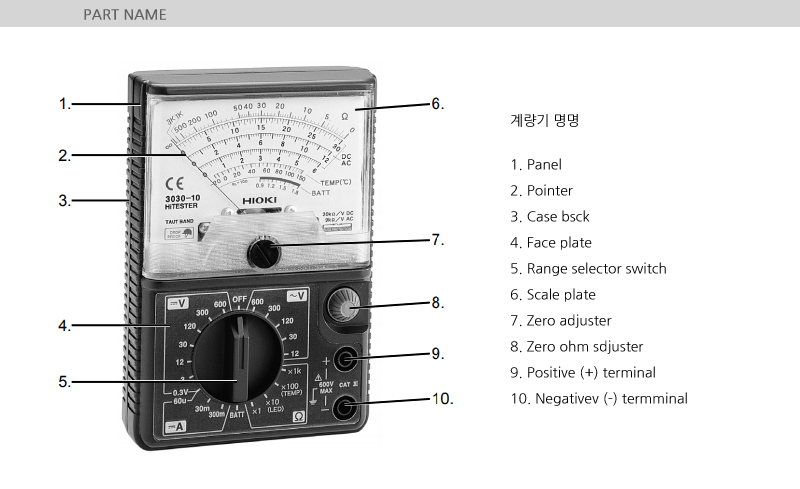

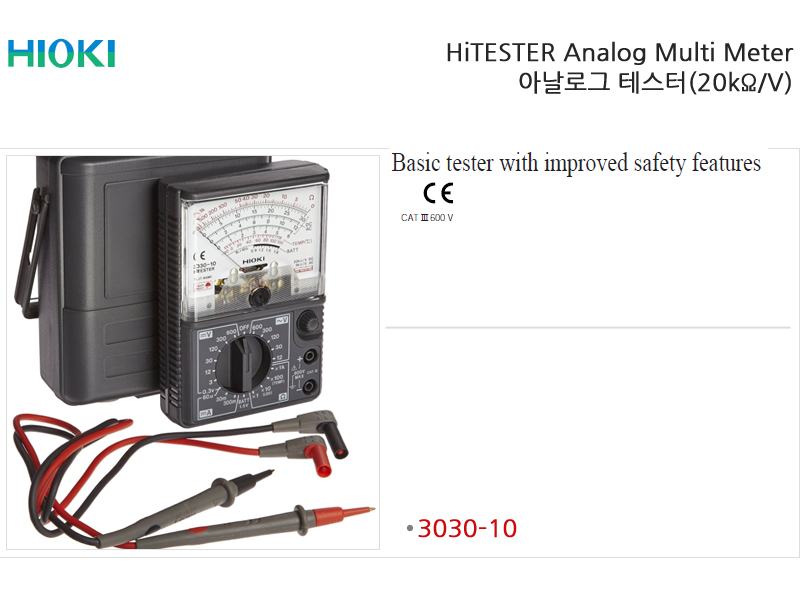

The Hioki 3030-10 is an analog multimeter that measures voltage, current and resistance, with robust construction that withstands a 1 meter drop onto a concrete floor.

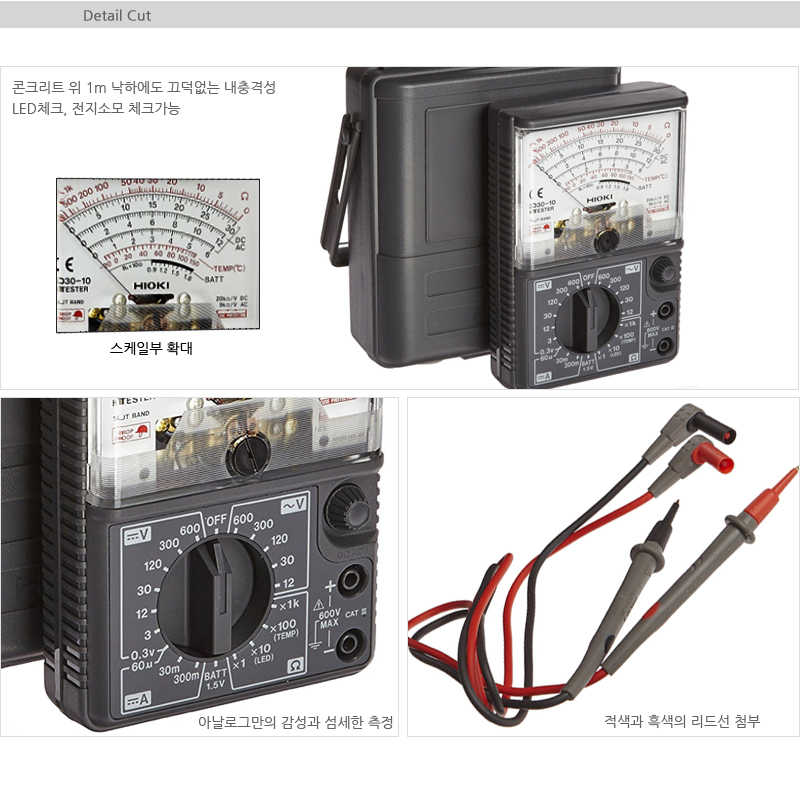

- Drop proof design withstands drop onto a concrete floor from a height of 1 meter
- LED check, Battery check support

DC voltage range	0.3 V (16.7 kΩ/V), 3/12/30/120/300/600 V (20 kΩ/V) / Accuracy: ±2.5 % f.s. Max. rated voltage: 600 V
AC voltage range	12 V (9 kΩ/V) Accuracy: ±4 % f.s. 30/120/300/600 V (9 kΩ/V) Accuracy: ±2.5 % f.s. / Average rectifier effective value, Max. rated voltage: 600 V
DC current range	60 µA/30 m/300 mA (300 mV internal voltage drop) / Accuracy: ±3 % f.s.
Resistance range	0 to 3 kΩ (center scale 30 Ω), R × 1, R × 10, R × 100, R × 1 k / Accuracy: ±3 % of scale length
Battery check	0.9 to 1.8 V, load resistance 10 Ω, Accuracy: ±6 % f.s.
Temperature scale	Note: The 3030-10 includes a temperature measurement scale, but because the optional Thermister Temperature Probe 9021-01 has been discontinued, the scale is not available for new customers.
Power supply	For resistance measurement range, R6P (AA) ×2 batteries
Dimensions and mass	95 mm (3.74 in) W × 141 mm (5.55 in) H × 39 mm (1.54 in) D, 280 g (9.9 oz)
Included accessories	Test Lead L9207-30 ×1, Spare fuse ×1, R6P (AA) manganese batteries ×2, Instruction manual ×1, Carrying case 9390 ×1
