[Daekyung Tech] Hydraulic universal material testing machine

Quote Contact_cs@roasexpo.com

The hydraulic universal testing machine is used for high-capacity samples of 50 tons or more.

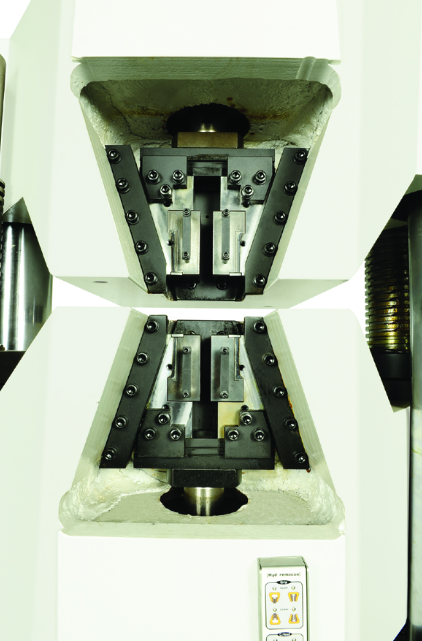

The main cylinder that applies the load as well as the chuck that holds the sample are operated by a small hydraulic cylinder.
The testable MAX.STROKE of the main cylinder is 200 mm.

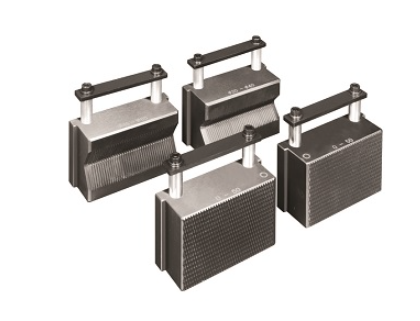

JAWs for round bars and flat plates that can be used for each capacity are provided.

Volume           Reputation        Hwanbong

500kN             40mm                12~35 Ø
1MN                50mm                20~65 Ø
2MN                80mm                20~65 Ø
3MN                80mm                20~65 Ø

Test speed: 0.1~80 mm/min
Loading accuracy: ± 0.4 %
Speed ​​accuracy: ± 1.5 %

Test speed: 0.1~80 mm/min
Loading accuracy: ± 0.4 %
Speed ​​accuracy: ± 1.5 %

AC 220V 3-phase / AC 380V, 3-phase power is used.

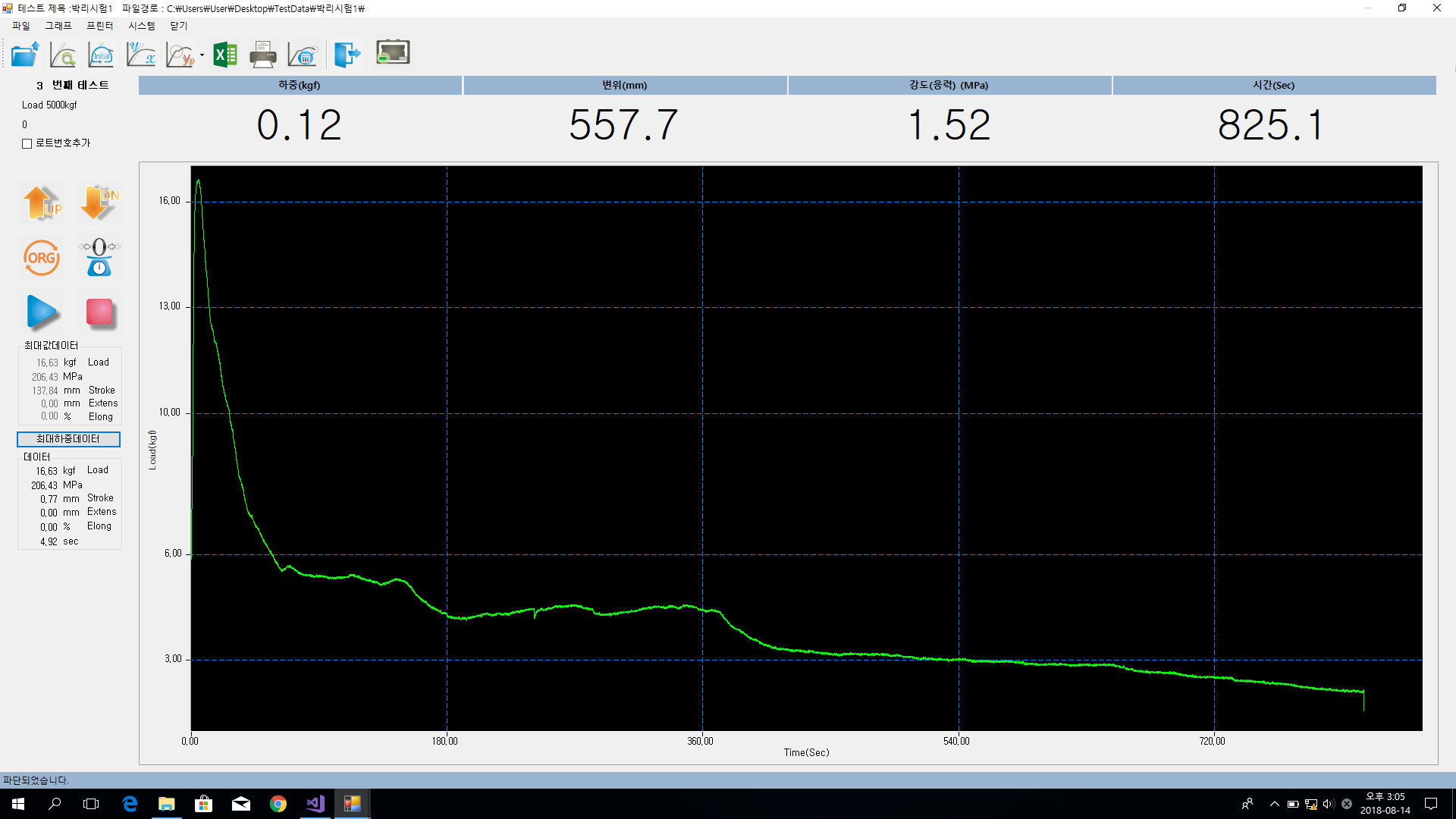

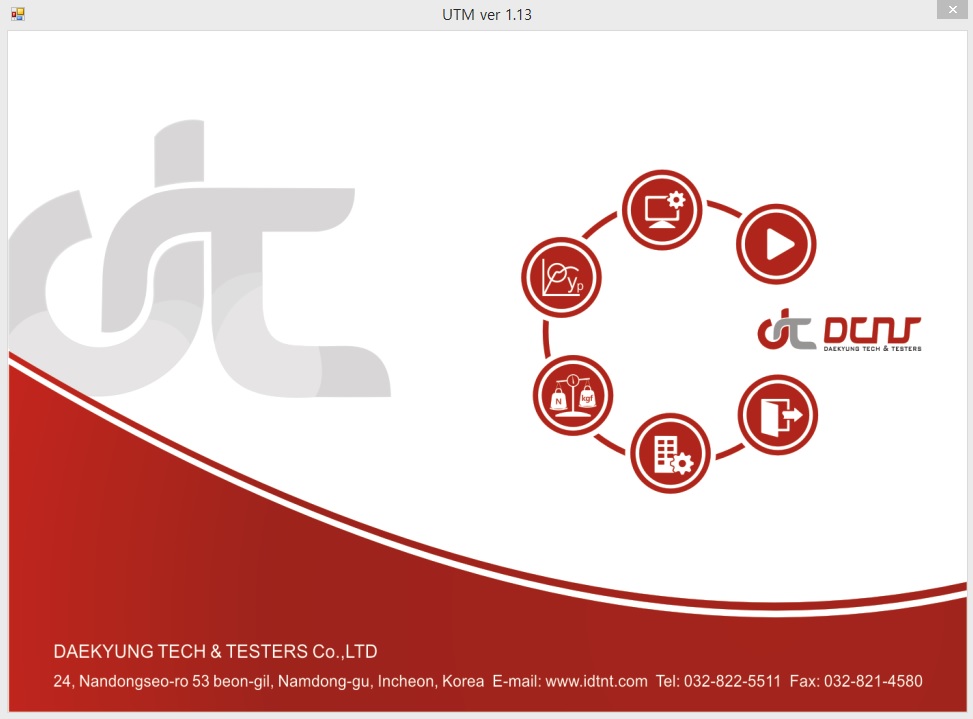

Innovative Software - HIVE

By introducing the library system, it is designed so that new operators can test quickly and safely.
After setting the test conditions, if you save them in the library folder, you can call them at any time and perform tests that meet the conditions immediately.
Misuse can cause problems or reduce the time it takes for new users to handle the tester innovatively.

* Store conditions and titles in the library system.

* library system

 - Title of exam
 - Tensile/Compression/Repeat determination
 - Determination of sample type
 - speed setting
 - Special condition setting (load maintenance and ramp section tuning)

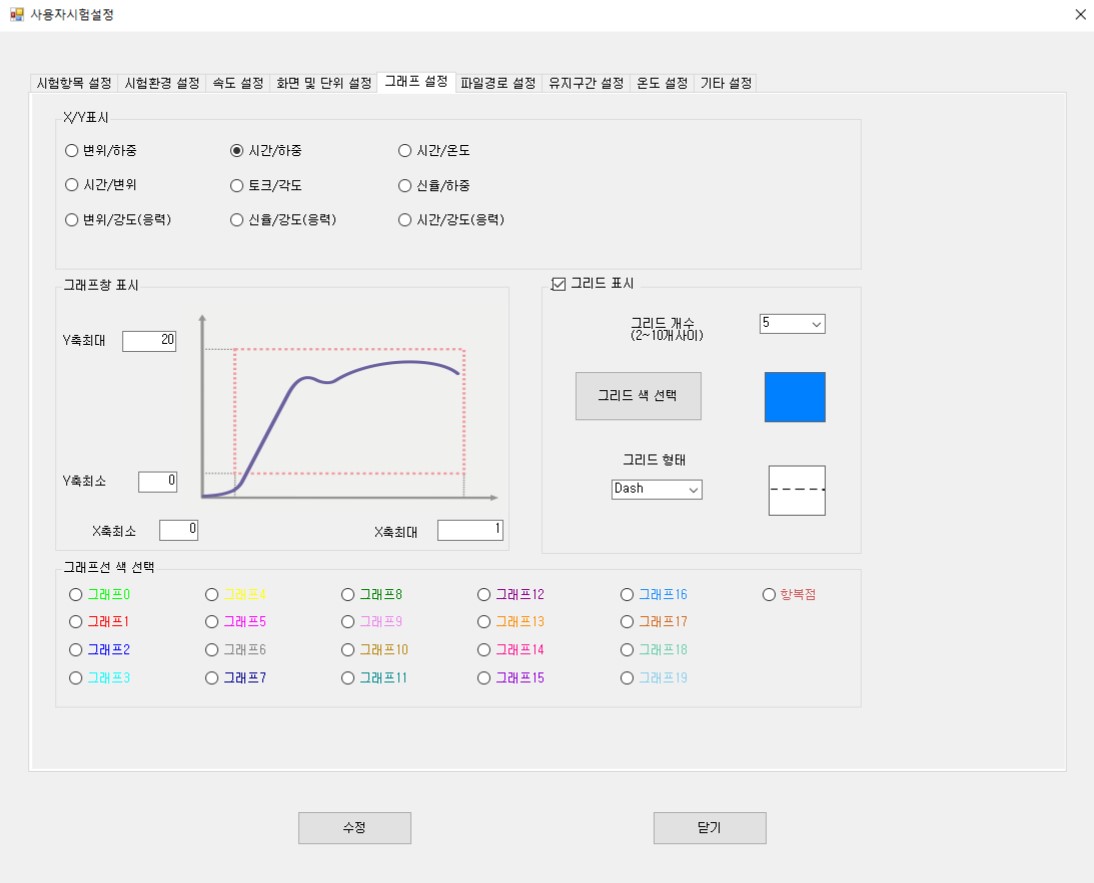

 - Graph and unit setting
 - Set the movement of the crosshead after the test
 - File saving section setting

* Test conditions saved in the library system can be loaded and the test can be performed immediately, and all test contents are automatically saved in a folder.

Automatic OFFSET Yield Point Search
Poisson's ratio measurement
R value measurement
Auto-detect modulus
load holding test
multi-speed test
cycle test
High-temperature furnace/environmental chamber application test
Convert data to excel

You can easily use the functions required for all tensile and compression tests.
