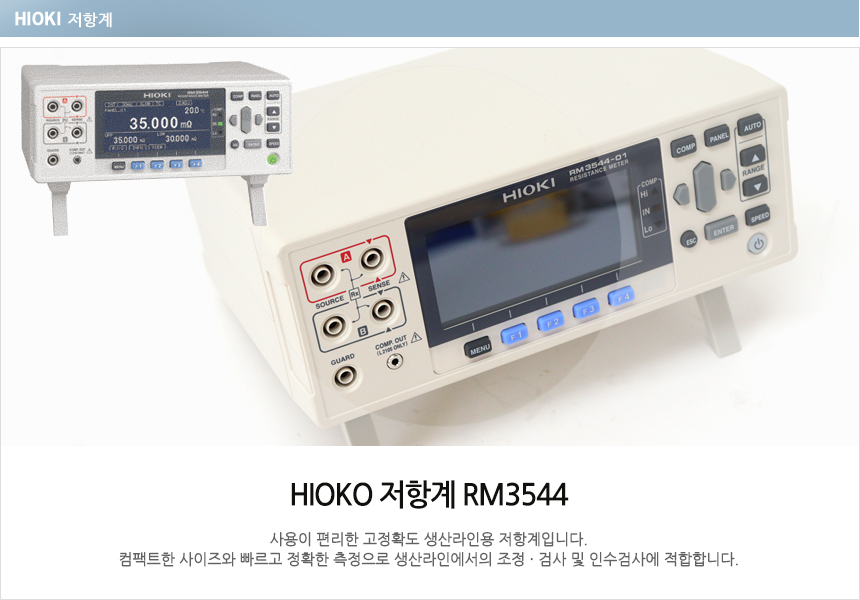

HIOKI RESISTANCE METER RM3544, Wide Range 30 mΩ to 3 MΩ DC Resistance Meters with Temperature Correction for High Speed Testing on Production Lines

0 reviews 0 sold. Only 999 remain

USD $1,339.13 USD $1,565.22 -14%

Negotiable (specific conditions to required)

Brands HIOKI

Product Code: HIOKI_RM3544

Stock In Stock

Viewed 110 times

Ship from South Korea

Quantity:

Add to wishlist
Add to compare

Tags: Resistance Tester

House Brand unavailable (OEM, ODM, OBM)

Dropshipping available

Seller information

HIOKI_SY교역

South Korea

Premium Partner

Seller Rating: 0 Reviews

Contact Seller

Visit Seller's Store

Categories Cart Account Search Recent View Go to Top

Description
Reviews (0)

Product Description

Hioki DC resistance meters measure a broad range of resistance values at a high level of precision. The RM3544 is easy-to-use resistance testers suitable for use on either manual or automated production lines for measuring the winding resistance of motors and transformers as well as the contact resistance of power relays, switches, and connectors.

- 0.02% basic accuracy, 1 μΩ max. resolution, 300 mA max. measurable current
- Measure from 0.000 mΩ (testing current 300 mA) to 3.5 MΩ
- Probe for guard jack use and increased measurement current yield an instrument that’s more resistant to noise
- Optional LED COMPARATOR ATTACHMENT and high-volume judgment tones combine to ensure PASS/FAIL judgments are communicated reliably in the noisy environment of the production floor
- EXT I/O interface with NPN/PNP support can accommodate a variety of automated production lines (-01 model)

How to use Hioki Low Resistance Meters: The Comparator Function

The Hioki RM3544 offers the ability to compare the measured value with user-defined upper and lower thresholds, and then displays and outputs the comparative decision.
On top of notifying the user of the results using the on-board LED and audio tones, the decision can also be output via the external input/output terminals to relay controls and PLC systems, making the instrument ideal for production and inspection lines.

Resistance range	30 mΩ (35.000 mΩ display max., 1 µΩ resolution) to 3 MΩ range (3.5000 MΩ display max., 100 Ω resolution), 9 steps / Measurement accuracy: ±0.020 % rdg. ±0.007 % f.s.
Testing current	[at 30 mΩ range] 300 mA DC to [at 3 MΩ range] 500 nA DC
Open-terminal voltage	5.5 V DC max.
Temperature measurement	-10.0 °Cto 99.9°C, accuracy: ±0.5 °C (Temperature Sensor Z2001 and RM3544 combined accuracy)
Measurement speed	FAST (50Hz: 21ms, 60Hz: 18ms) / MED (101ms) / SLOW (401ms)
Functions	Temperature correction, comparator (ABS/REF%), key-lock (OFF, menu lock, all lock), display digit count selection function (5 digits/ 4 digits), automatic power supply frequency settings (AUTO/50Hz/60Hz), scaling, judgment sound setting, auto hold, averaging, panel store/panel load
Communication interfaces	[Only RM3544-01] Select from RS-232C, Printer (RS-232C), or USB / Remote function, communications monitor function, data output function
Power supply	100 to 240 V AC, 50/60 Hz, Rated power consumption: 15 VA
Dimensions and mass	215 mm (8.46 in) W × 80 mm (3.15 in) H × 166 mm (6.54 in) D / [RM3544] 0.9 kg (31.7 oz), [RM3544-01] 1.0 kg (35.3 oz)
Included accessories	[RM3544] Power cord ×1, Clip type lead L2101 ×1, Instruction manual ×1, Spare fuse ×1 / [RM3544-01] Power cord ×1, Clip type lead L2101 ×1, Male EXT. I/O connector ×1, Instruction manual ×1, Application disc ×1, USB cable (A-to-B type) ×1, Spare fuse ×1
