Product Description

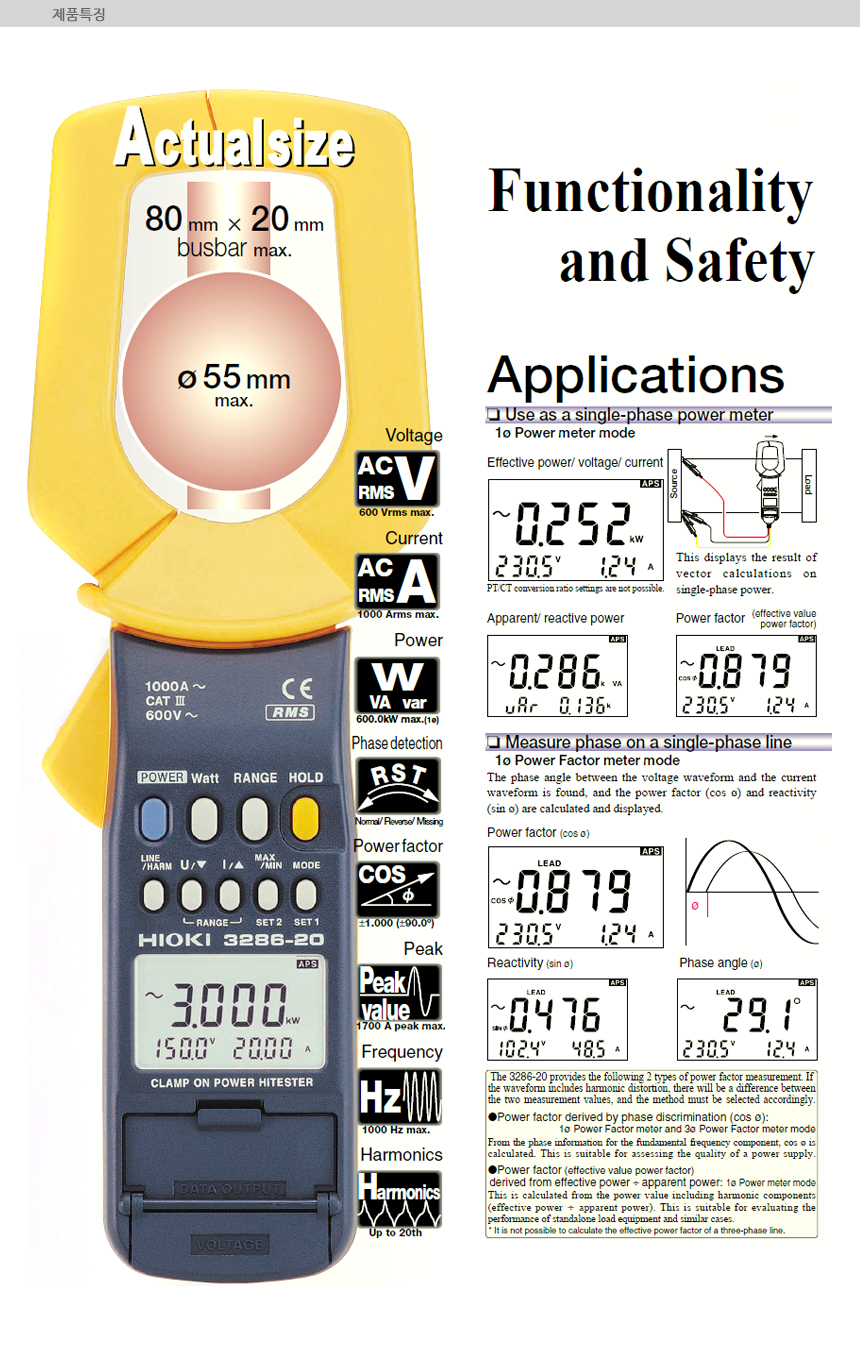

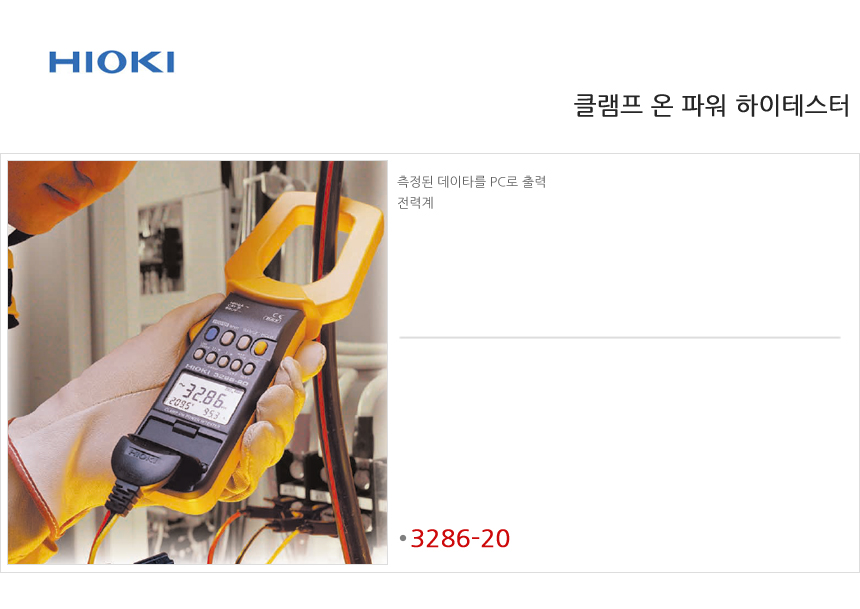

Hioki clamp meters are best in class handheld current and voltage meters for safely and accurately measuring power lines. The 3286-20 clamp on power meter can measure voltage, current, power, power factor, phase angle, reactive power or frequency, as well as detect phase sequence on live lines at any desired point of a single-phase circuit or three-phase circuit.

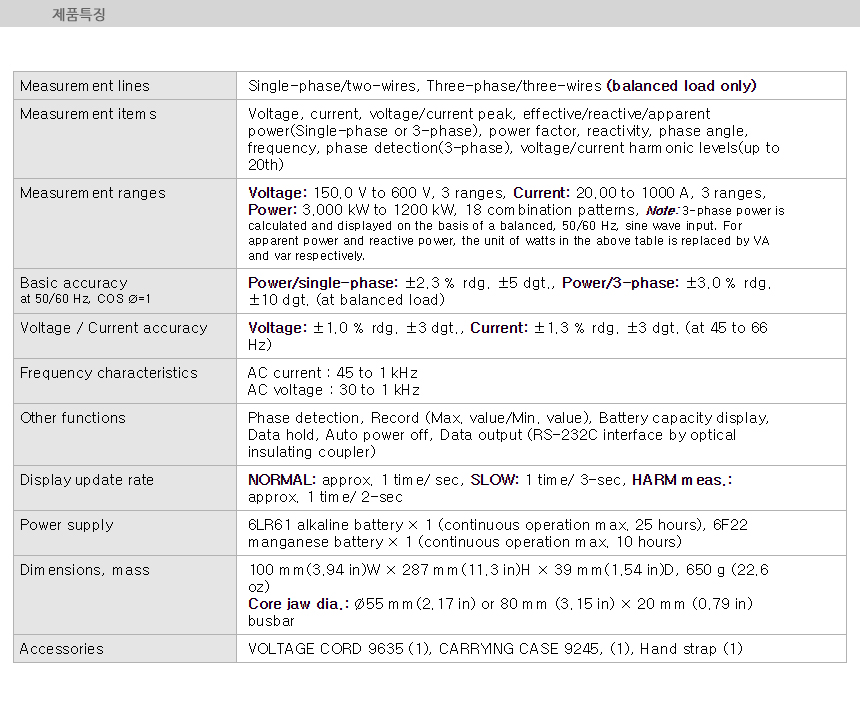

- Measurement line: Single-phase AC, three-phase (equilibrium load)

- Measurement items: voltage, current, voltage/current peak, effective/surface/null power, power factor, phase angle, null factor, frequency, voltage/current, harmonic

- Measurement range: Voltage; 150.0 to 600V 3 ranges / Current; 20.0 to 1000A 3 ranges / Power; 3.000 kW-120.0 kW (by combination of current and voltage ranges)

- Voltage amplification: ±1.0% rdg. ±3 dgt

- Current amplification: ±1.3% rdg. ±3 dgt. (at 45 to 66 Hz)

- Power amplification: Power/single-phase: +2.3% rdg. ±5 dgt., Power/3-phase: ±3.0 % rdg. ±10 dgt. (at balanced load)

- Display update rate: NORMAL approximately 1 time/s, SLOW approximately 1 time/3s, harmonic measurement reagent 1 time/2s

- Frequency characteristics: AC current (45 to 1 kHz), AC voltage (30 to 1 kHz)

- Interface: RS-232C (optional 9442 printer printable)

- Features: Inspection, records, data hold, auto power off, display battery remaining, printer output

- Measureable conductor diameter: $55mm, 80mm × 20mm busbar max.

- Power supply: Stackable alkaline battery (6LR61) x 1 (approximately 25h in continuous use) Alternatively, stacked manganese chain (6F22) x1 (continuous use approximately 10h)

- Dimensions and mass: 100 mm (3.94 in) W x 287 mm (11.3 in) H x 39 mm (1.54 in) D, 650 g (22.6 oz)

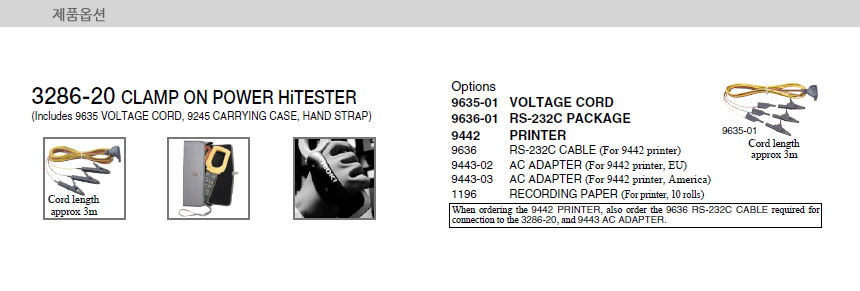

- Accessories: 9635 Voltage Code 1, 9245 Portable Case 1, Hand Leather Strap 1
