HIOKI CLAMP ON ADAPTER 9290-10, AC Current Transformer to Meet Applications Exceeding 1000A AC

HIOKI CLAMP ON ADAPTER 9290-10, AC Current Transformer to Meet Applications Exceeding 1000A AC

0 reviews 0 sold. Only 999 remain
Negotiable (specific conditions to required)
Brands
Product Code: HIOKI_9290-10
Stock In Stock
Viewed 84 times
Ship from South Korea
House Brand unavailable (OEM, ODM, OBM)
Dropshipping available

Seller information
  • HIOKI_SY교역
  • South Korea
  • Premium Partner
  • Seller Rating:    0 Reviews
  • Contact Seller
  • Visit Seller's Store
  • Product Description

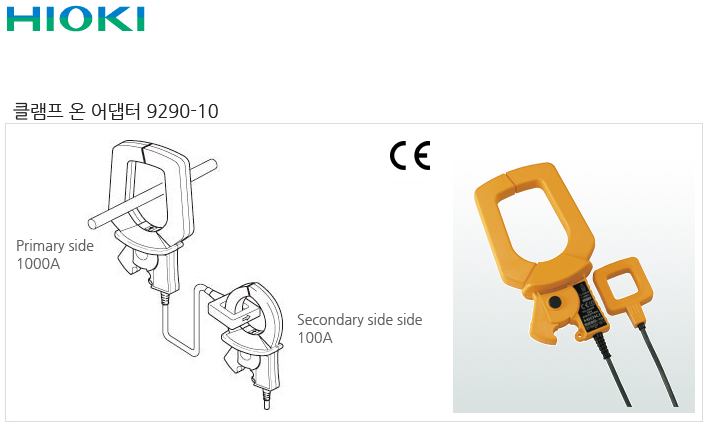

    The 9290-10 is a clamp-on adapter rated for 1500A AC, and features a 10:1 CT ratio. In addition to the large clamp diameter, broad frequency characteristics and good phase characteristics, the CT reliably provides Hioki clamp on power meters with expanded range and large current measurements.
    - Output large currents of 1,000 A AC continuously (1,500 A for 5 minutes) at a CT ratio of 10:1
    - Expand the measurement range of normal clamp ammeters
    - Excellent phase characteristics that can be used to expand power meter measurement ranges



    Rated primary current
    AC 1000 A continued (Maximum 1500 A for 5 minutes or shorter)
    Rated secondary current
    AC 100 A (10 : 1 CT ratio)
    Amplitude accuracy
    ±1.5% rdg.
    Phase accuracy
    ±1.0° or less
    Frequency characteristic
    Amplitude: 20 Hz to 5 kHz: ±2.0 % rdg. (deviation from accuracy) / Phase: 20 Hz to 5 kHz: ±1.0 ° or less (deviation from accuracy)
    Max. rated voltage to earth
    600 V AC rms (insulated wire)
    Core jaw dia.
    φ 55 mm (2.17 in) or 80 mm (3.15 in) × 20 mm (0.79 in) busbar
    Dimensions and mass
    99.5 mm (3.92 in) W × 188 mm (7.40 in) H × 42 mm (1.65 in) D, 580 g (20.5 oz), cord length 3 m (9.84 ft)
    Included accessories
    Instruction manual ×1, Mark band ×6
