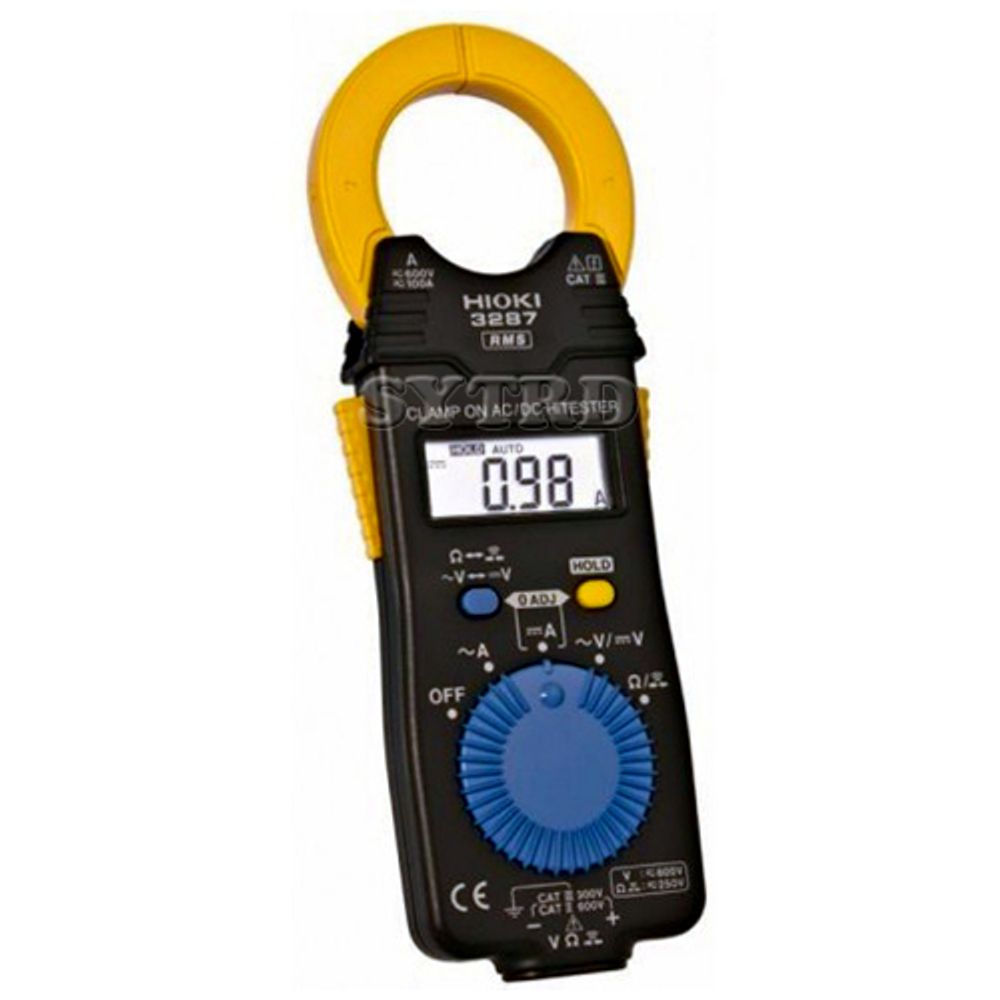

HIOKI CLAMP ON AC/DC HiTESTER 3287, Compact & Easy, One-Touch Maintenance on All Types of AC/DC Equipment

The Hioki 3287 is an AC/DC current and voltage clamp meter that also measures continuity and resistance, featuring a double jaw lever and slim profile for easy access to crowded wires.

- Accurately measure even small currents with 10 A range
- Voltage, resistance, and continuity check functions

Basic specifications
- DC Current range: 10.00/ 100.0 A, Basic accuracy: ±1.5 % rdg. ±5 dgt.
- AC Current range: 10.00/ 100.0 A (10 Hz to 1 kHz, True RMS) / Basic accuracy: ±1.5 % rdg. ±5 dgt.
- DC Voltage range: 419.9 mV to 600 V, 5 ranges, Basic accuracy: ±1.3 % rdg. ±4 dgt.
- AC Voltage range: 4.199 V to 600 V, 4 ranges (30 to 500 Hz, True RMS) / Basic accuracy: ±2.3 % rdg. ±8 dgt.
- Resistance range: 419.9 Ω to 41.99 MΩ, 6 ranges, Basic accuracy: ±2 % rdg. ±4 dgt
- Crest factor: 2.5 or less (150 A, 1000 V max.)
- Other functions: Continuity: (50 Ω ±40 Ω) or less buzzer sounds, Data hold, Auto power save, Auto zero (DC A)
- Display: LCD, max. 4199 dgt., Display refresh rate: 2.5 times/s
- Power supply: Coin type lithium battery (CR2032) ×1, Continuous use 25 hours
- Core jaw dia.: φ 35 mm (1.38 in)
- Dimensions and mass: 57 mm (2.24 in) W × 180 mm (7.09 in) H × 16 mm (0.63 in) D, 170 g (6.0 oz)
- Included accessories: Coin type lithium battery (CR2032) × 1, Carrying case 9398 ×1, Test lead L9208 ×1, Instruction manual ×1
