HIOKI ANALOG MΩ HiTESTER IR4018-20, Reliable and Efficient Insulation Testing in the Field

0 reviews 0 sold. Only 999 remain

230,650원 257,337원 -10%

Negotiable (specific conditions to required)

Brands HIOKI

Product Code: HIOKI_IR4018-20

Stock In Stock

Viewed 10591 times

Ship from South Korea

Quantity:

Add to wishlist
Add to compare

Tags: Tachometer Insulation Measurement

House Brand unavailable (OEM, ODM, OBM)

Dropshipping available

Seller information

HIOKI_SY교역

South Korea

Premium Partner

Seller Rating: 0 Reviews

Contact Seller

Visit Seller's Store

Cart Account Search Recent View Go to Top

Product Description

The IR4018-20 is a single-range, 1000V/2000MΩ analog insulation resistance tester with efficient functions and features to help shorten work time associated with field insulation testing.

- Single range testing voltage of 1000 V
- Test insulation resistance up to 2000 MΩ

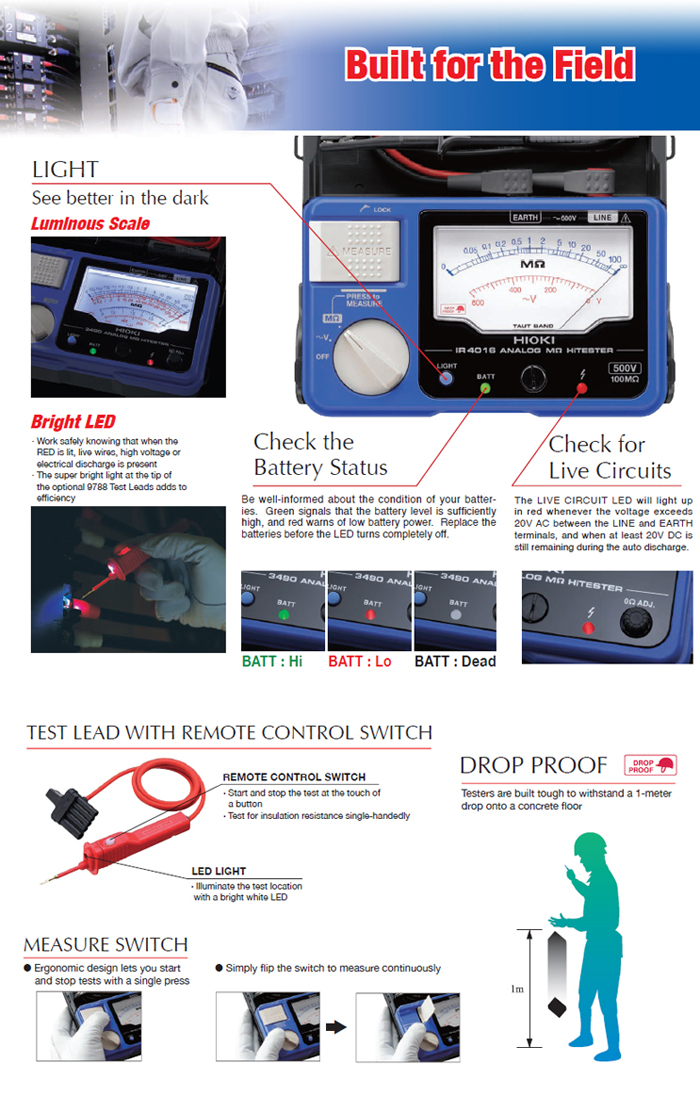

- Built tough to withstand a 1-meter drop onto a concrete floor
- Bright LED luminous scale
- Check for live circuits and battery status
- Integrated hard case for quick and easy storage without disconnecting the leads

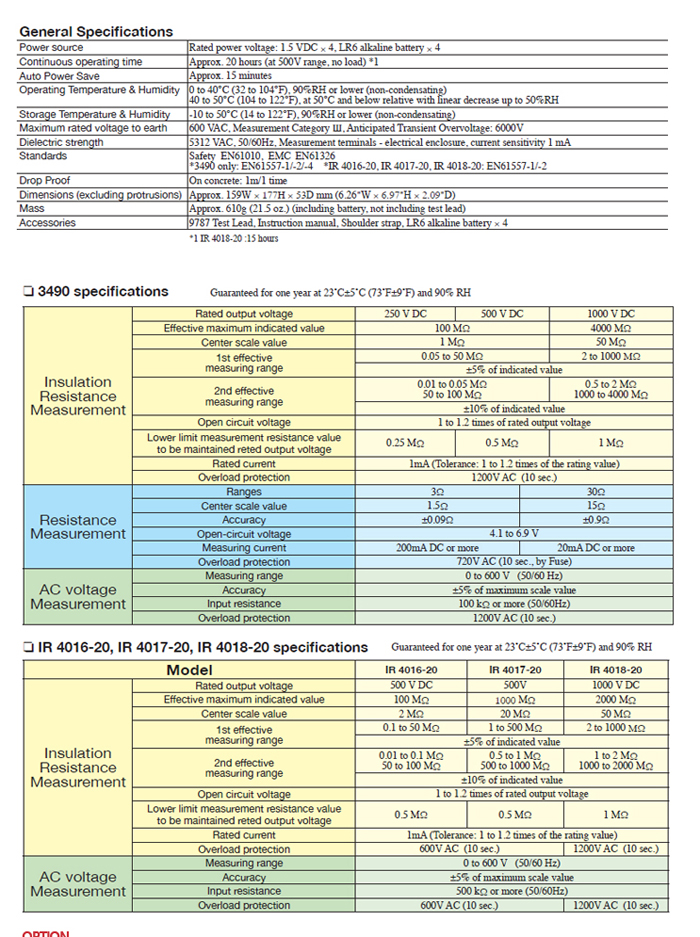

Rated output voltage	1000 V DC
Effective maximum indicated value	2000 MΩ
Accuracy 1st effective measuring range	±2 % of scale length, 2 M to 1000 MΩ
Lower limit resistance	1 MΩ (measurement resistance value to maintain testing voltage)
Overload protection	1200 V AC (10 sec.)
AC voltage range	0 to 600 V (50/60 Hz), ±5 % of maximum scale value accuracy, 500 kΩ or more input resistance
Other functions	Bright LED luminous scale, Drop proof (on concrete, 1 m/1 time), Battery check, Live circuit check, Auto discharge
Power supply	LR6 (AA) alkaline batteries ×4, Continuous use: 15 hours (no load)
Dimensions and mass	159 mm (6.26 in) W × 177 mm (6.97 in) H × 53 mm (2.09 in) D, 610 g (21.5 oz), (including battery, excluding test lead)
Included accessories	Test Lead L9787 ×1, LR6 (AA) alkaline batteries ×4, Instruction manual ×1, Shoulder strap ×1
