HIOKI ANALOG MΩ HiTESTER IR4016-20, Reliable and Efficient Insulation Testing in the Field

HIOKI ANALOG MΩ HiTESTER IR4016-20, Reliable and Efficient Insulation Testing in the Field

0 reviews 0 sold. Only 999 remain
USD $267.74 USD $304.35 -12%
Negotiable (specific conditions to required)
Brands
Product Code: HIOKI_IR4016-20
Stock In Stock
Viewed 97 times
Ship from South Korea
House Brand unavailable (OEM, ODM, OBM)
Dropshipping available

Seller information
  • HIOKI_SY교역
  • South Korea
  • Premium Partner
  • Seller Rating:    0 Reviews
  • Contact Seller
  • Visit Seller's Store
  • Product Description

    The IR4016-20 is a single-range, 500 V/100 MΩ analog insulation resistance tester with efficient functions and features to help shorten work time associated with field insulation testing.

    - Single range testing voltage of 500 V
    - Test insulation resistance up to 100 MΩ

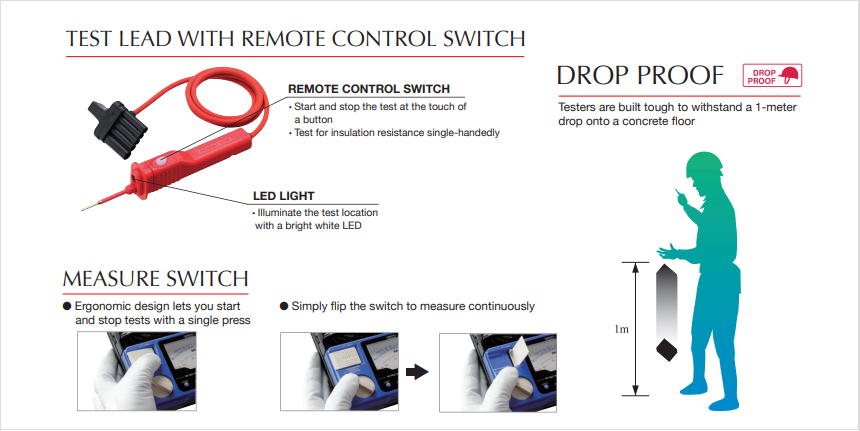

    - Built tough to withstand a 1-meter drop onto a concrete floor

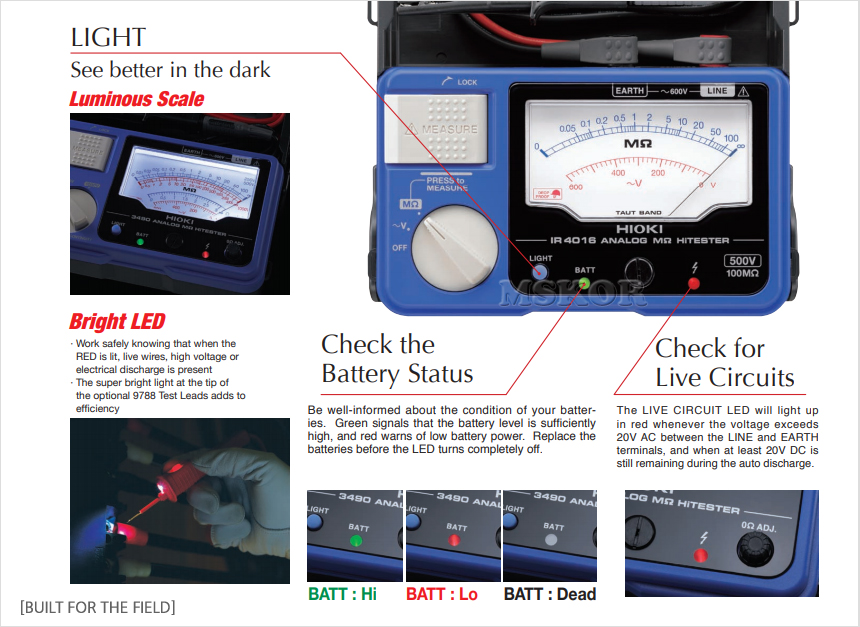

    - Bright LED luminous scale
    - Check for live circuits and battery status
    - Integrated hard case for quick and easy storage without disconnecting the leads

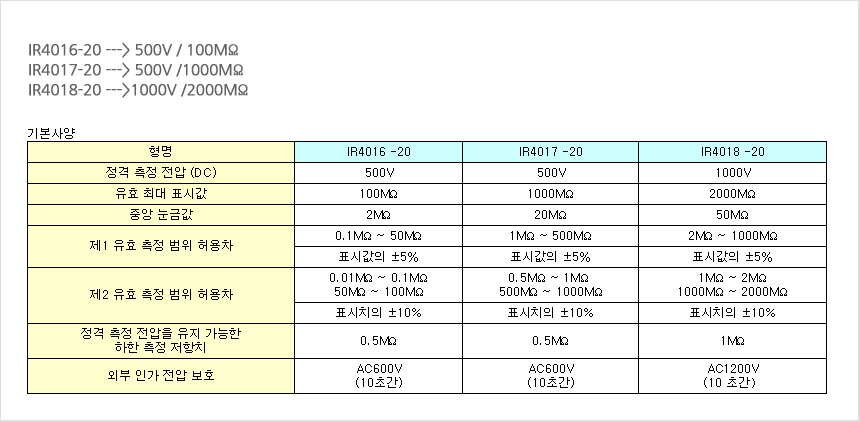

    Rated output voltage
    500 V DC
    Effective maximum indicated value
    1000 MΩ
    Accuracy 1st effective measuring range±2 % of scale length, 1 M to 50 MΩ
    Lower limit resistance
    0.5 MΩ (measurement resistance value to maintain testing voltage)
    Overload protection
    600 V AC (10 sec.)
    AC voltage range
    0 to 600 V (50/60 Hz), ±5 % of maximum scale value accuracy, 500 kΩ or more input resistance
    Other functions
    Bright LED luminous scale, Drop proof (on concrete, 1 m/1 time), Battery check, Live circuit check, Auto discharge
    Power supply
    LR6 (AA) alkaline batteries ×4, Continuous use: 20 hours (no load)
    Dimensions and mass
    159 mm (6.26 in) W × 177 mm (6.97 in) H × 53 mm (2.09 in) D, 610 g (21.5 oz), (including battery, excluding test lead)

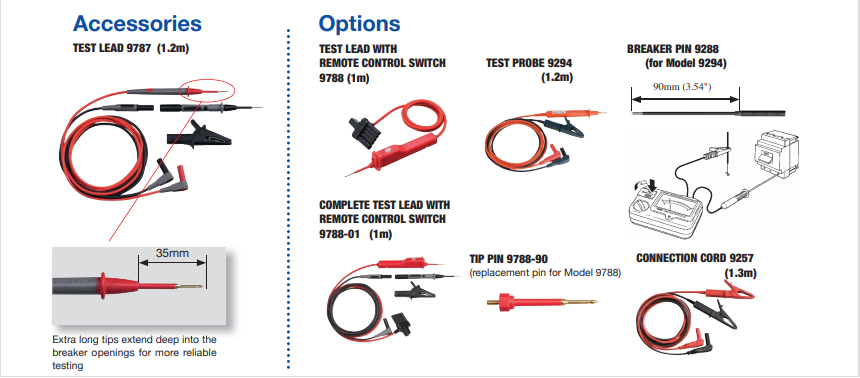

    Included accessories
    Test Lead L9787 ×1, LR6 (AA) alkaline batteries ×4, Instruction manual ×1, Shoulder strap ×1
