HIOKI AC CLAMP METER CM3289, Quickly clamp wires in even more confined spaces

0 reviews 0 sold. Only 999 remain

USD $117.30 USD $130.43 -10%

Negotiable (specific conditions to required)

Brands HIOKI

Product Code: HIOKI_CM3289

Stock In Stock

Viewed 102 times

Ship from South Korea

Quantity:

Add to wishlist
Add to compare

Tags: Tachometer Clamp Meter

House Brand unavailable (OEM, ODM, OBM)

Dropshipping available

Seller information

HIOKI_SY교역

South Korea

Premium Partner

Seller Rating: 0 Reviews

Contact Seller

Visit Seller's Store

Categories Cart Account Search Recent View Go to Top

Description
Reviews (0)

Product Description

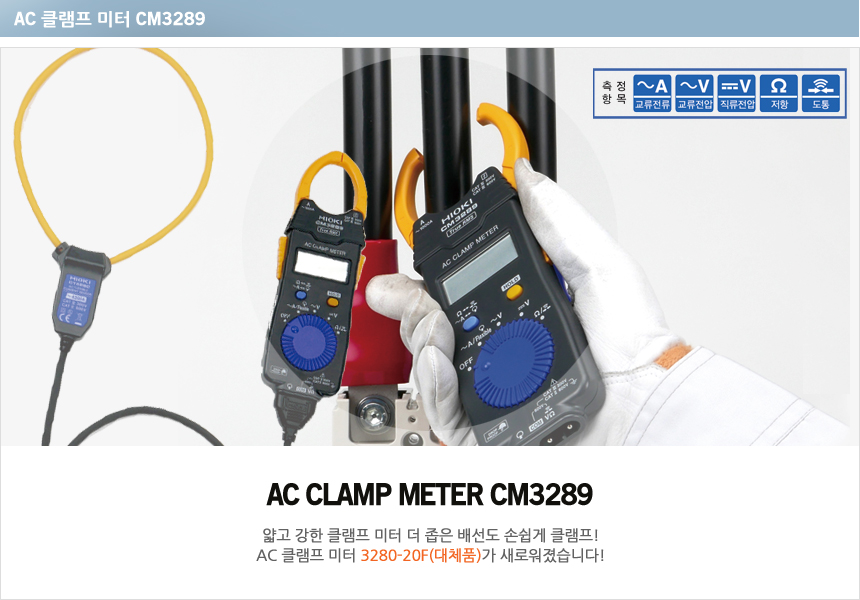

The CM3289 is a True RMS rectifying 1000A AC clamp meter that features a broad operating temperature range of -25° C to 65° C, thin and compact clamp core and optional flexible current sensor that you can attach to let you get into the tightest spots.

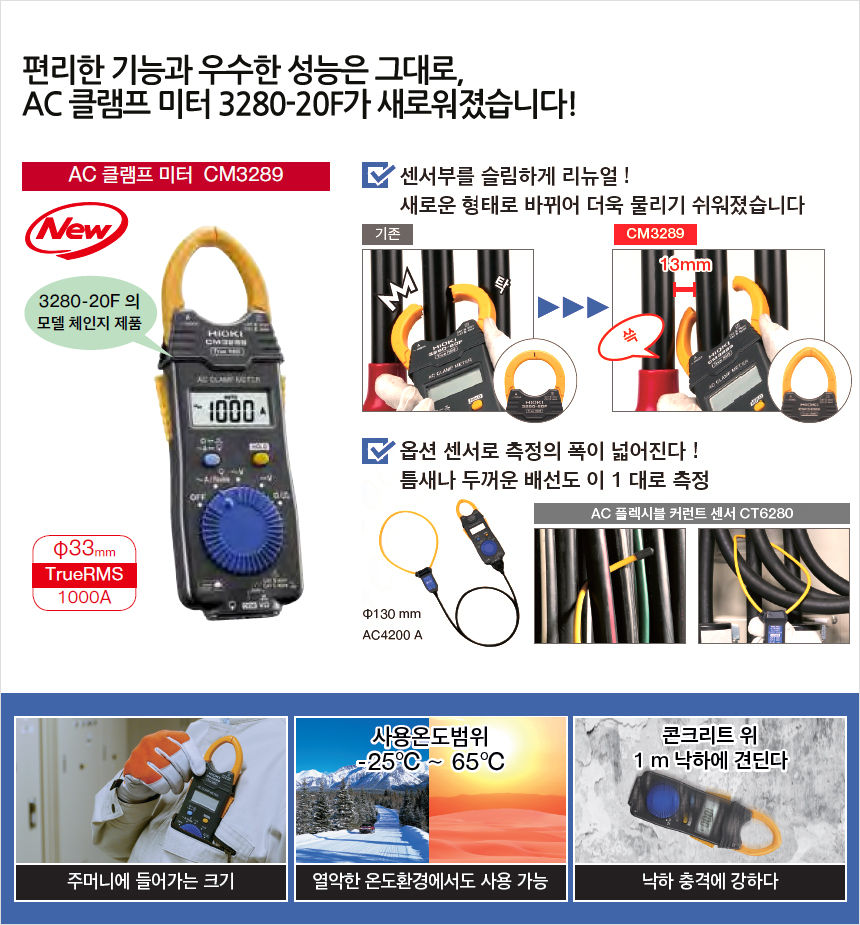

- The CM3289 is the successor to the popular 3280-20F with a redesigned thinner sensor to help you get into the tightest spaces.
- New redesigned sensor for even easier clamping
- Expanded -25 °C to 65 °C operating temperature range
- Measure even harmonic waveform components using the True RMS method
- Connect the CT6280 flexible sensor to measure up to 4199 A in thick or paired wires

- AC Current range : 42.00 to 1000 A, 3 ranges (40 Hz to 1 kHz, True RMS), Basic accuracy: ±1.5 % rdg. ±5 dgt.
- DC Voltage range: 420.0 mV to 600 V, 5 ranges, Basic accuracy: ±1.0 % rdg. ±3 dgt.
- AC Voltage range: 4.200 V to 600 V, 4 ranges (45 to 500 Hz, True RMS), Basic accuracy: ±1.8 % rdg. ±7 dgt.
- Crest factor: 2.5 or less at 2500 counts (Linearly decreases to 1.5 or less at 4200 count)
- Resistance range: 420.0 Ω to 42.00 MΩ, 6 ranges, Basic accuracy: ±2 % rdg. ±4 dgt.
- Other functions: Continuity: Buzzer sounds at 50 Ω ±40 Ω or less, Data hold, Auto power save, Drop-proof from height of 1 meter
- Display: LCD, max. 4199 dgt., Display refresh rate: 400 ms
- Power supply: Coin type lithium battery (CR2032) ×1 / Continuous use 70 hours
- Core jaw dia.: φ 33 mm (1.30 in)
- Dimensions and mass: 57 mm (2.24 in) W × 181 mm (7.13 in) H × 16 mm (0.63 in) D, 100 g (3.5 oz)
- Included accessories: CARRYING CASE 9398 × 1, TEST LEAD L9208 × 1, Coin type lithium battery (CR2032) × 1, Instruction manual × 1

CT6280 Basic specifications
- Core jaw dia.: φ 130 mm (5.12 in) (Cable cross-section diameter: 5 mm (0.20 in); tip cap diameter: 7 mm (0.28 in))
- AC Current: 419.9 A/ 4199 A, 2 ranges (±3.0 % rdg. ±5 dgt.)
- Cable length: 800 mm (31.5 in)
